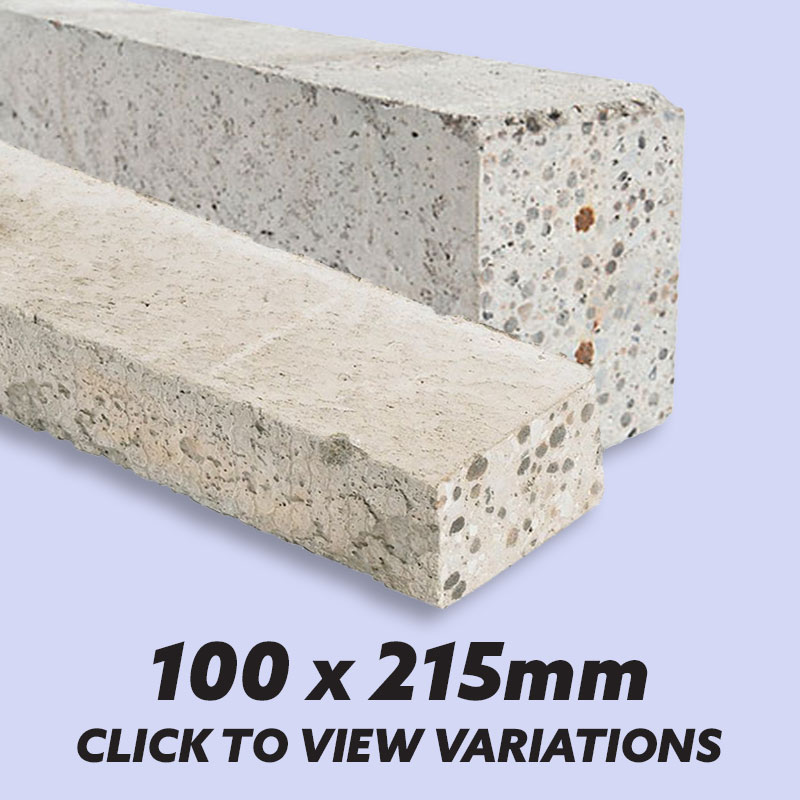

Texture Prestressed Concrete Lintel 100 x 215
Texture Prestressed Concrete Lintel 100 x 215
Price range: £23.30 through £135.00 excl. VAT
VARIATIONS
100 x 215 x 600mm Concrete Lintel
100 x 215 x 900mm Concrete Lintel
100 x 215 x 1200mm Concrete Lintel
100 x 215 x 1500mm Concrete Lintel
100 x 215 x 1800mm Concrete Lintel
100 x 215 x 2100mm Concrete Lintel
100 x 215 x 2400mm Concrete Lintel
100 x 215 x 2700mm Concrete Lintel
100 x 215 x 3000mm Concrete Lintel
100 x 215 x 3600mm Concrete Lintel
ALL PRICES LISTED ARE SUBJECT TO VAT AT THE PREVAILING RATE
Texture Prestressed Concrete Lintel 100 x 215 x Variable Lengths
VARIATIONS
100 x 215 x 600mm Concrete Lintel
100 x 215 x 900mm Concrete Lintel
100 x 215 x 1200mm Concrete Lintel
100 x 215 x 1500mm Concrete Lintel
100 x 215 x 1800mm Concrete Lintel
100 x 215 x 2100mm Concrete Lintel
100 x 215 x 2400mm Concrete Lintel
100 x 215 x 2700mm Concrete Lintel
100 x 215 x 3000mm Concrete Lintel
100 x 215 x 3600mm Concrete Lintel
Precision made, high performance structural concrete lintels.
Texture prestressed concrete lintel used for all typical lintel applications.
Reinforced with steel these lintels are load bearing.
Colour and texture of lintel may vary dependant on what is available in area local to delivered address
This product is known by names such as prestressed concrete lintels and precast concrete lintels
These lintels are designed to take direct imposed loads.
Suitable for rafters, wall plates and floor joists as directly imposed loads
BEARING: Minimum of 150mm each side or as directed by the structural engineer.
PROPPING: Propping is not required with this type of lintel.
BRICKWORK: Non-composite lintels do not require brickwork bonded to them.
Features
- Precision made, high performance structural concrete lintels
- Designed and manufactured in accordance with BS 5977; Part 2; 1983
- Harmonised Technical Specification BS 5977: Part 1: 1981, BS EN 845-2: 2103, BS 8110: Part 1: 1985, BS 8110: Part 2: 1985
- Concrete used is Grade 50. Fire resistance is 30 minutes (ref BS 8110:1985, Part 2, Section 4)
Additional information
| Texture Prestressed Concrete Lintel 100x215 | Concrete Lintel 100x215x600, Concrete Lintel 100x215x900, Concrete Lintel 100x215x1200, Concrete Lintel 100x215x1500, Concrete Lintel 100x215x1800, Concrete Lintel 100x215x2100, Concrete Lintel 100x215x2400, Concrete Lintel 100x215x2700, Concrete Lintel 100x215x3000, Concrete Lintel 100x215x3600 |
|---|
