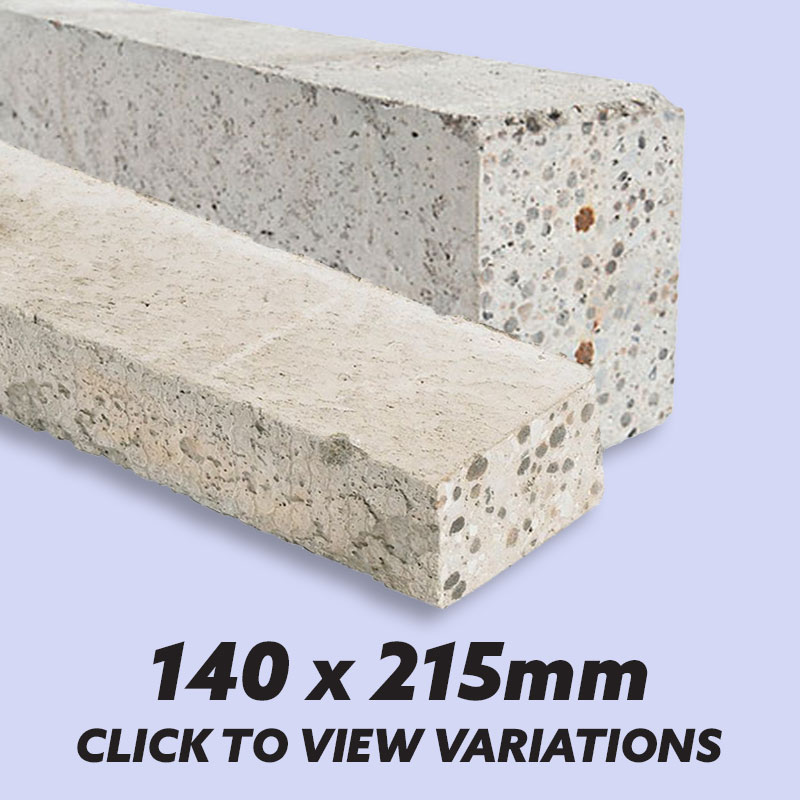

Texture Prestressed Concrete Lintel 140 x 215 x Variable Lengths
Texture Prestressed Concrete Lintel 140 x 215 x Variable Lengths
Price range: £34.15 through £132.60 excl. VAT
You save (%)
VARIATIONS
140 x 215 x 900mm Concrete Lintel
140 x 215 x 1200mm Concrete Lintel
140 x 215 x 1500mm Concrete Lintel
140 x 215 x 1800mm Concrete Lintel
140 x 215 x 2100mm Concrete Lintel
140 x 215 x 2400mm Concrete Lintel
140 x 215 x 2700mm Concrete Lintel
140 x 215 x 3000mm Concrete Lintel
ALL PRICES LISTED ARE SUBJECT TO VAT AT THE PREVAILING RATE
Texture Prestressed Concrete Lintel 140 x 215 x Variable Lengths
VARIATIONS
140 x 215 x 900mm Concrete Lintel
140 x 215 x 1200mm Concrete Lintel
140 x 215 x 1500mm Concrete Lintel
140 x 215 x 1800mm Concrete Lintel
140 x 215 x 2100mm Concrete Lintel
140 x 215 x 2400mm Concrete Lintel
140 x 215 x 2700mm Concrete Lintel
140 x 215 x 3000mm Concrete Lintel
Precision made, high performance structural concrete lintels.
Texture prestressed concrete lintel used for all typical lintel applications.
Reinforced with steel these lintels are load bearing.
Colour and texture of lintel may vary dependant on what is available in area local to delivered address
This product is known by names such as prestressed concrete lintels and precast concrete lintels
These lintels are designed to take direct imposed loads.
Suitable for rafters, wall plates and floor joists as directly imposed loads
BEARING: Minimum of 150mm each side or as directed by the structural engineer.
PROPPING: Propping is not required with this type of lintel.
BRICKWORK: Non-composite lintels do not require brickwork bonded to them.
Features
- Precision made, high performance structural concrete lintels
- Designed and manufactured in accordance with BS 5977; Part 2; 1983
- Harmonised Technical Specification BS 5977: Part 1: 1981, BS EN 845-2: 2103, BS 8110: Part 1: 1985, BS 8110: Part 2: 1985
- Concrete used is Grade 50. Fire resistance is 30 minutes (ref BS 8110:1985, Part 2, Section 4)
Additional information
| Texture Prestressed Concrete Lintel 140x215 | Concrete Lintel 140x215x900, Concrete Lintel 140x215x1200, Concrete Lintel 140x215x1500, Concrete Lintel 140x215x1800, Concrete Lintel 140x215x2100, Concrete Lintel 140x215x2400, Concrete Lintel 140x215x2700, Concrete Lintel 140x215x3000 |
|---|
Related products
-

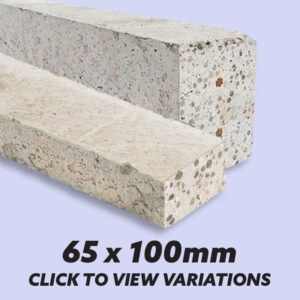

Texture Prestressed Concrete Lintel 65 x 100 x Variable Lengths
Price range: £3.20 through £29.13 excl. VAT
You save (%) Select options This product has multiple variants. The options may be chosen on the product page -

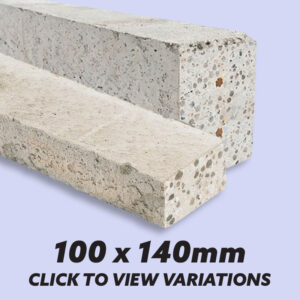

Texture Prestressed Concrete Lintel 100 x 140 x Variable Lengths
